4WD 4Wheel Robot Chassis

Product Description: Chassis Rectangle 4WD 4 wheel robot chassis:

The 4 Wheel Smart Car Robot Chassis Kit with Speed Encoder is an excellent DIY kit for both Kids and engineering students. The most cost-effective and latest robot vehicle kit, with a simple mechanical structure that is simple to assemble and use. The Chassis kit includes everything you’ll need to give your robot a fast four-wheel-drive base with plenty of space for sensors and controllers to be added later. Simply connect your electronics (Arduino/Raspberry Pi and Motor Driver) and begin programming your robot. It has a big surface area with predrilled holes for installing sensors and electronics according to your needs. This is a 4-wheel Car chassis frame that comes with 2 Acrylic Transparent frames, 4 Wheels, 4 BO motors, and a pack of Screws and hexnuts. This pack also contains 4 discs for speed encoders.

Transparent platform for building a robot It comes with four DC motors with 65mm diameter wheels. The chassis components are made of acrylic and have mounting holes to mount various sensors, controllers (including Arduino, Baby Orangutan, Raspberry Pi), and more. To run the robot, simply assemble the platform, bolt on the motors, attach the wheels, and add any robot controller (e.g. Arduino Uno with Motor Shield). The power source can be AA (stick) batteries, a suitable basket to mount them can be found in our offer, as well as sensors that can extend the capabilities of the robot.

Specifications of the robot chassis

• Motor supply voltage: 6 V max
• Torque: 0.8 kg*cm (0.78 Nm)
• No-load motor rotation: 90 +/- 10 rpm
• Motor current consumption without load: 190 mA (max. 250 mA)
• Motor current consumption at shaft standstill: 1 A
• Wheels:
  • Diameter: 65 mm
  • Width: 30 mm
  • Plastic rims with rubber tires
• Structure dimensions: 255 x 160 x 65 mm

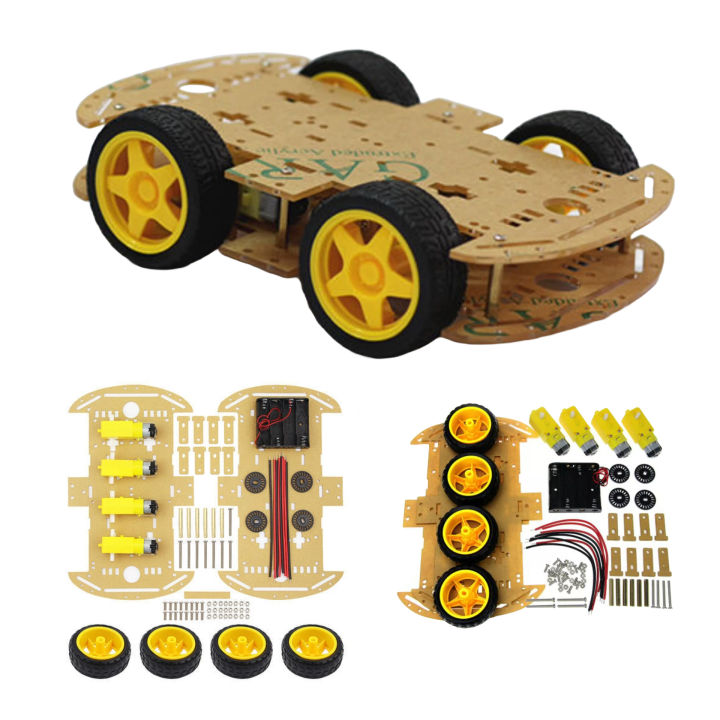

The kit includes:

• Two layered transferred acrylic chassis
• Four wheels with 65 mm diameter tires
• Four DC motors with gears
• AA Battery Case four-cell
• Metal and plastic components (screws, nuts, etc.)
